GPR vs. X-Ray Scanning for Concrete: Which Is Better?

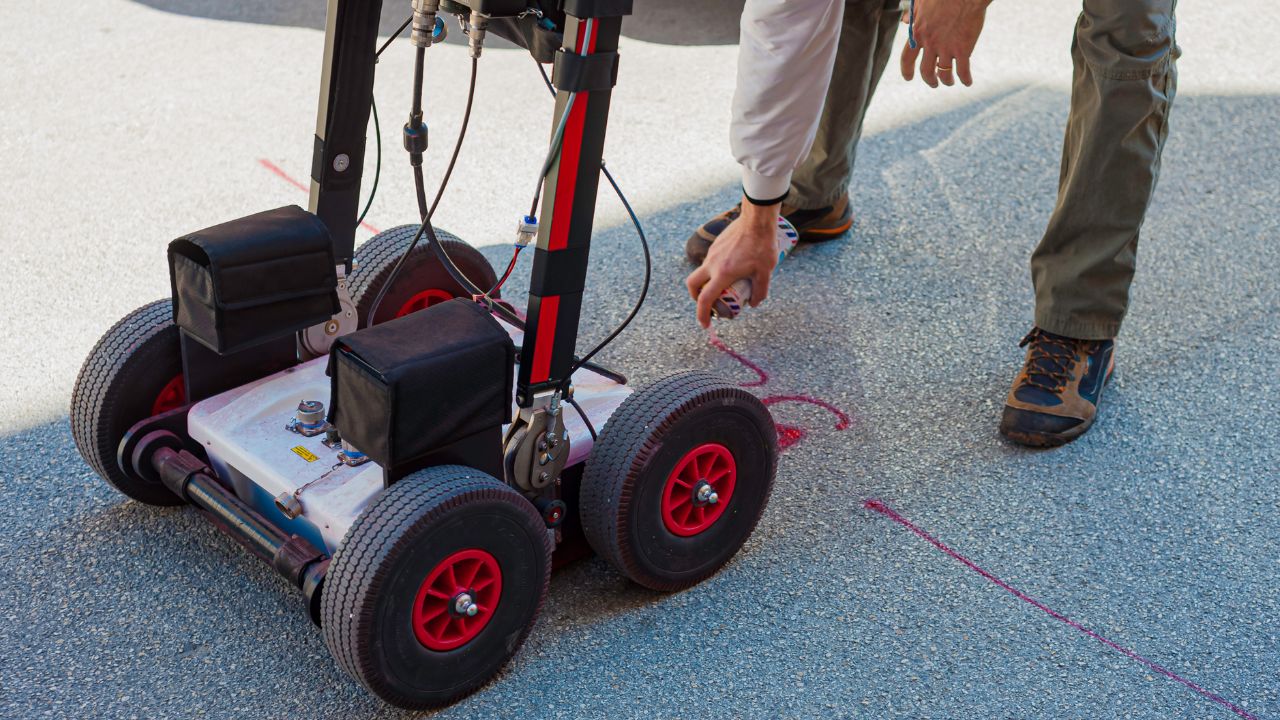

Ground-penetrating radar and X-ray scanning

Ground-penetrating radar and X-ray scanning serve different roles in concrete inspection and utility detection. Each technology offers distinct advantages in safety, accuracy, and operational efficiency. Selecting the appropriate method depends on project requirements, budget constraints, and site conditions. Understanding the technical capabilities and limitations of each approach ensures optimal results.

Key Takeaways

  • Ground-penetrating radar provides safer concrete scanning without ionizing radiation exposure
  • X-ray imaging delivers higher resolution but costs up to 10 times more
  • GPR requires single-sided access, while X-ray requires access from both sides
  • Electromagnetic locating works only for metallic utilities, while GPR detects all materials
  • Combining multiple technologies produces the most comprehensive subsurface assessment

What Is Ground Penetrating Radar and How Does It Work?

Core Technology and Typical Applications

Ground-penetrating radar utilizes high-frequency electromagnetic radio waves to detect anomalies within concrete structures. GPR transmits radar pulses into the ground and records echoes from subsurface boundaries. Concrete investigation represents 28% of the GPR market, while utility detection accounts for 24.25%. Transportation infrastructure applications constitute 22% of market demand, driven by highway assessments.

Safety Considerations of GPR

GPR emits non-ionizing radio waves similar to a cell phone, with no health risks. The technology poses no danger to operators or bystanders during operation. GPR scores 92 out of 100 in safety ratings compared to other scanning methods. Modern surface concrete scanning systems deliver real-time results without radiation exposure concerns.

How Does X-Ray Scanning for Concrete Operate?

Technical Process and Equipment Used

X-ray imaging uses ionizing radiation to create high-resolution images of concrete interiors. X-ray requires access to both sides of the structure for proper operation. The radiation source must be positioned on one side with the receiver film placed opposite. Digital panels have replaced traditional film in modern systems, but dual-access remains mandatory.

Safety Protocols and Restrictions

X-rays emit harmful ionizing radiation, requiring strict safety protocols during operation. X-ray requires a 50-foot minimum clearance zone to protect workers and bystanders. X-ray typically necessitates off-hours work in occupied buildings to minimize exposure risks. Regulatory compliance adds time and cost to every project involving this technology.

What Are the Key Differences Between GPR and X-Ray for Concrete Scanning?

Precision, Depth, and Resolution Comparison

GPR can penetrate depths of 18 to 24 inches in concrete structures. X-ray scores 95 out of 100 in absolute accuracy for detailed imaging. GPR provides real-time data directly on integrated screens or tablets for immediate interpretation. X-ray data historically required off-site development, though digital systems have improved turnaround times. GPR requires access to only one side of a slab, making it practical for most construction scenarios.

Safety, Cost, and Efficiency Factors

X-ray services are often up to 10 times more expensive than GPR scanning. X-ray scanning disadvantages: LA projects include extended setup time and mandatory evacuations. Ground-penetrating radar advantages LA contractors with faster deployment and no clearance zones. The best concrete scanning method balances accuracy requirements with safety and budget constraints. Understanding what is concrete scanning and what can it find helps determine appropriate technology selection.

When Should Each Technology Be Chosen for Concrete Scanning?

Scenarios Favoring GPR Use

GPR excels in general concrete scanning for locating rebar and post-tension cables. Occupied facilities, including hospitals and schools, require radiation-free inspection methods like GPR. Non-metallic utility detection demands GPR because X-ray struggles with low-density materials. Unknown subsurface environments benefit from GPR’s comprehensive scanning capabilities without access limitations.

Situations Necessitating X-Ray Scanning

X-ray becomes essential when absolute clarity is required for structural integrity assessments. Extremely congested concrete slabs may scatter GPR signals, requiring X-ray’s superior resolution. Thickness verification for structural engineering evaluations often necessitates X-ray precision over GPR estimates. Complex reinforcement patterns in critical infrastructure sometimes justify X-ray’s higher cost and restrictions.

How Do GPR and X-Ray Compare With Electromagnetic Locating for Utility Detection?

Capabilities and Limitations of EM Locating

Electromagnetic locating works by detecting electromagnetic fields generated by alternating current in cables. EM locating requires inducing a specific frequency signal onto metallic pipes using transmitters. EM locating is strictly limited to metallic utilities or utilities with tracer wire. EM locating cannot locate non-metallic pipes without additional labor using specialized rodder equipment. GPR can detect both metallic and non-metallic utilities, making it more versatile.

Cost and Operational Distinctions Among GPR, X-Ray, and EM Technologies

Handheld GPR systems range from $11,000 to $17,000, while cart-based models cost $20,000 to $35,000. EM locators range from $3,000 to $8,000, making them most affordable initially. Industrial X-ray equipment costs $40,000 to $100,000 or more for complete systems. EM equipment costs $3,000 to $5,000 compared to $11,000 to $35,000 for GPR. However, 3 different ways for concrete imaging and scanning each serve distinct project needs beyond the initial purchase price.

How Do Demographics and Regional Factors Influence the Adoption of GPR and X-Ray?

Industry Age Groups and Technology Adoption Rates

The Tech Adoption Maturity Index measures construction industry technology adoption rates across demographics. Construction TAMI average score reached 6.6 in 2023 with significant generational differences. TAMI projections indicate scores will hit 8.4 in 2024 as younger professionals enter management. Professionals aged 18 to 45 demonstrate significantly higher GPR adoption than those over 60.

Urban Versus Rural Demand Patterns

North America leads GPR adoption with 38.31% market share, driven by infrastructure density. The North America utility detection market reached USD 2.33 billion in 2024, concentrated in metropolitan areas. Urban environments require precise utility locating comparison that Los Angeles contractors use to prevent catastrophic strikes. Rural jurisdictions show lower adoption rates due to less congested subsurface networks and relaxed regulations.

What Are Expert Recommendations for Selecting Concrete Scanning Technologies?

Best Practices for Combining GPR, X-Ray, and EM Locating

Industry leaders recommend complementary approaches rather than relying on single technologies. EM locating quickly traces known metallic lines before GPR verifies non-metallic utilities. GPR vs X-ray concrete scanning decisions should consider whether surface concrete scanning work meets project accuracy requirements. Combined scanning approaches deliver comprehensive subsurface assessments exceeding any single method’s capabilities.

Decision-Making Frameworks Based on Project Requirements

Select GPR for general concrete scanning and when radiation hazards are unacceptable. Choose X-ray only when absolute clarity justifies the higher cost and safety protocols. Use EM locating for tracing known metallic utilities over long distances efficiently. Evaluate 5 factors that affect GPR accuracy before finalizing technology selection for critical projects.

Evaluating GPR Vs. X-Ray Scanning for Concrete: Balancing Safety, Cost, and Performance

The global GPR market reached USD 457.32 million in 2025, with projections to reach USD 882.67 million by 2034. The industrial X-ray market was valued at USD 860 million in 2023 and is projected to reach USD 1.53 billion by 2030. GPR market growth reflects a compound annual growth rate of 7.58%, driven by safety advantages. Construction professionals increasingly prioritize GPR because 5 reasons to use a ground penetrating radar GPR for construction projects include radiation-free operation and real-time data delivery. The utility locating comparison Los Angeles contractors consistently favors GPR for most applications outside specialized structural assessments.

Ground-penetrating radar has emerged as the dominant technology, balancing safety, cost, and performance effectively. X-ray remains valuable for high-precision structural evaluations where its superior resolution justifies additional expense. Electromagnetic locating continues serving as the most cost-effective option for tracing known metallic utilities. Understanding GPR vs concrete X-ray for utility location helps project managers make informed decisions that protect workers and prevent costly utility strikes. Following the 12 best safety practices during utility location ensures optimal results regardless of the technology selected.

Get Accurate Concrete Scanning from Util-Locate

When your project depends on knowing exactly what sits inside a slab, you need a partner who gets it right. Util-Locate has located thousands of subsurface utilities and concrete features across California and Arizona since 2001, with a 97% accuracy rate and no radiation exposure on the job site. Our certified technicians use advanced GPR to find rebar, post-tension cables, conduits, and non-metallic lines, then hand you real-time results you can act on immediately. Schedule your concrete scan online today, or contact us to talk through your project with a specialist who knows what is below.

Concrete Scanning in Los Angeles Before Coring or Cutting

Ground Penetrating Radar

Concrete scanning identifies embedded utilities, reinforcement, and structural elements before cutting or coring begins. Professional scanning prevents utility strikes, structural damage, and worker injuries that occur when contractors drill blindly into concrete slabs.

Los Angeles contractors increasingly rely on concrete scanning to meet safety regulations and avoid project delays. The regional construction boom has generated unprecedented demand for pre-construction verification services across commercial, residential, and infrastructure projects.

Key Takeaways

  • Ground Penetrating Radar detects both metallic and non-metallic objects embedded in concrete slabs
  • Severing a post-tension cable without scanning costs $10,000-$30,000 to repair
  • Los Angeles building permits grew 14.3% year-over-year, increasing demand for scanning services
  • Professional GPR scanning achieves 99.8% accuracy in identifying subsurface obstructions
  • Construction accounts for one in five fatal workplace injuries, making pre-scanning essential



What Is Concrete Scanning and Why Is It Essential?

Concrete scanning uses subsurface detection technology to map embedded objects before physical modification occurs. Contractors use scanning to locate rebar, post-tension cables, conduit, and voids that pose hazards during cutting operations.

Failure to scan before coring creates immediate safety risks and financial liability. A single severed post-tension cable releases explosive energy that threatens workers and causes structural sagging, requiring emergency repair.

What Technologies Are Used in Concrete Scanning?

Ground Penetrating Radar uses high-frequency radio waves to detect both metallic and non-metallic objects. Electromagnetic scanning uses electromagnetic fields to locate steel reinforcement within concrete slabs.

Ultrasonic Pulse Echo uses sound waves to detect internal flaws and measure thickness. X-ray scanning uses radioactive isotopes to create photographs of concrete interiors, though GPR represents 45% of the scanning technology market share.

What Are the Main Risks of Coring or Cutting Without Scanning?

Severing post-tension cable costs $10,000-$30,000 to repair after unplanned strikes occur during coring. Utility strikes cause an explosive release of energy, posing a lethal threat to workers on site.

Striking post-tension cable causes immediate structural sagging, requiring emergency engineering assessment and repair. Untrained operators using high-impact tools transfer damaging energy beyond the cut line, compromising structural integrity throughout the slab.

How Does Ground Penetrating Radar (GPR) Work in Concrete Scanning?

The operator moves the GPR unit across the concrete surface in systematic grid patterns. Radio waves penetrate concrete and reflect back from embedded objects, creating subsurface images.

A certified technician interprets the data and marks safe cutting or coring locations on the surface. GPR typically achieves 18-24 inches of depth penetration in cured concrete, sufficient for most commercial applications.

How Does the Los Angeles Construction Market Influence Scanning Demand?

Los Angeles construction activity directly drives demand for concrete scanning and utility verification services. Regional infrastructure investment and residential development create a continuous need for pre-construction subsurface investigation.

Building permit growth reflects increased coring and cutting operations requiring professional scanning services. Construction expansion generates corresponding demand for safety technologies that prevent utility strikes and structural damage.

What Are the Regional and Urban Demographics Driving Scanning Needs?

Los Angeles building permits grew 14.3% year-over-year in Q2 2025, accelerating renovation activity. Los Angeles has added 22,500 new construction jobs since January 2025, expanding the workforce performing cutting operations.

The Los Angeles regional infrastructure budget is $12.3 billion, funding projects requiring extensive concrete modification work. Los Angeles County represents 32% of California’s GPR market share, with 58% of demand originating from urban core projects.

How Do Contractor Generations Affect Technology Adoption?

Millennials now lead spending, with one in five spending more than $5,000 annually on projects. This generation uses technology extensively, with 39% using social media for project planning and safety research.

Generation X accounts for 34% of construction sector consumer spending, maintaining steady demand for professional services. Baby Boomers represent 33.7% of spending, down from 43.7% in 2020, with only 9% using social media for project planning.

What Criteria Do Contractors Use to Choose a Concrete Scanning Service?

Contractors evaluate scanning providers based on accuracy guarantees, response time, and technology quality. Service selection prioritizes damage prevention capabilities over price alone, given the high cost of utility strikes.

Professional certification and equipment sophistication directly influence provider selection among experienced contractors. Contractors managing large projects demand comprehensive reporting and coordination with cutting operations to maintain schedule integrity.

Which Service Features Rank Highest in Contractor Decision-Making?

Accuracy and reliability rank first at 98% importance among contractors selecting scanning services. Cost considerations rank second at 92%, balanced against potential repair expenses from undetected obstructions.

Safety guarantees rank third at 88%, protecting contractors from liability when strikes occur. Turnaround time ranks fourth at 85%, supporting tight project schedules that cannot accommodate delays.

How Do Certification and Technology Quality Impact Provider Selection?

SIM (Subsurface Investigation Methodology) certification is required for GPR project managers conducting commercial scanning. Certified technicians demonstrate competency in GPR operation and data interpretation through standardized training.

GPRS boasts a 99.8% accuracy rate across over 500,000 completed jobs, establishing industry benchmarks. Equipment quality and certification credentials differentiate premium providers from budget alternatives lacking professional standards.

What Are Typical Pricing Structures for Scanning Services in Los Angeles?

GPR hourly rates range from $250-$300 versus daily rates from $1,000-$5,000 for extended projects. Budget scanning costs $250-$500 for basic metal detection, while premium multi-tech services cost $1,500-$5,000 for comprehensive analysis.

Emergency same-day service commands premium pricing from $2,000-$6,000 due to immediate mobilization requirements. Standard scanning packages typically cost $1,000 for half-day service, including basic 2D reporting and surface marking.

How Do Different Concrete Scanning Technologies Compare?

Each scanning technology offers distinct advantages suited to specific detection requirements and project conditions. Ground Penetrating Radar dominates the market due to versatility, while specialized technologies serve niche applications.

Technology selection depends on target objects, depth requirements, and site access limitations. Contractors increasingly demand multi-technology approaches combining GPR with electromagnetic or ultrasonic methods for comprehensive verification.

What Are the Advantages and Limitations of GPR?

GPR is sensitive to moisture, making detection challenging on fresh concrete with high water content. GPR requires expert interpretation to distinguish actual obstructions from signal artifacts and ground conditions.

GPR depth penetration reaches 18-24 inches versus electromagnetic scanning’s 120-200mm limitation in standard applications. Modern GPR systems detect both metallic and non-metallic objects, providing comprehensive subsurface visibility.

When Is Electromagnetic or Ultrasonic Scanning Preferred?

Electromagnetic scanning cannot detect non-metallic objects like PVC conduit, voids, or delamination within slabs. Electromagnetic scanning is limited to 120-200mm depth penetration, restricting applications to shallow reinforcement mapping.

Ultrasonic testing is time-intensive for large areas due to the point-by-point measurement methodology requiring complete coverage. Electromagnetic scanning holds 25% market share, while ultrasonic technology represents 20% of professional scanning applications.

Why Has X-Ray Scanning Declined in Usage?

X-ray scanning requires access to both sides of the slab, limiting applications in occupied buildings. X-ray scanning poses radiation hazards requiring site evacuation and regulatory compliance during operation.

X-ray scanning is a slower process than GPR, reducing efficiency on projects requiring multiple locations. X-ray scanning accounts for only 7% market share as contractors shift toward safer GPR alternatives.

What Are the Safety and Cost Benefits of Professional Concrete Scanning?

Professional concrete scanning eliminates guesswork that causes utility strikes and structural damage during cutting operations. Contractors who invest in pre-construction scanning avoid repair costs exceeding initial project budgets.

Documented scanning provides liability protection when unexpected conditions emerge during construction activities. Safety protocols incorporating professional scanning reduce workplace injuries and associated workers’ compensation claims significantly.

How Does Scanning Prevent Utility Strikes and Structural Damage?

A financial institution in Little Rock hired contractors to core ten locations through an elevated slab. GPR scanning revealed post-tension cables in every single proposed coring location, preventing catastrophic strikes.

Construction injuries and accidents cause $11.5 billion in damages annually across the United States. Construction accounts for one in five fatal workplace injuries, making subsurface verification an essential safety practice.

What Are the Financial Consequences of Skipping Pre-Coring Scans?

The Little Rock case study demonstrates that repair costs could have exceeded $300,000 without scanning. Los Angeles GPR scanning costs $1,000-$2,000 per day, preventing disproportionately higher repair expenses.

Post-tension cable repair alone costs $10,000-$30,000 per incident, not including engineering assessments or delays. Project shutdowns from utility strikes create cascading costs, including crew downtime, schedule compression, and liquidated damages.

Can Professional Scanning Reduce Workplace Injuries on Site?

Professional scanning eliminates exposure to explosive energy release from severed post-tension cables or pressurized utilities. Accurate subsurface mapping allows crews to work confidently without fear of striking hidden obstructions.

OSHA regulations increasingly emphasize proactive hazard identification before excavation or concrete modification begins. Contractors implementing scanning protocols demonstrate due diligence that reduces liability exposure and insurance premiums.

How Do Leading Los Angeles Providers Differentiate Their Services?

Los Angeles scanning providers compete on accuracy guarantees, response time, and integrated service offerings. Market leaders combine advanced technology with proprietary guarantees that transfer liability away from contractors.

Regional providers emphasize local expertise and rapid mobilization for emergency situations requiring immediate scanning. National providers leverage extensive project history and standardized methodologies to ensure consistent quality across locations.

What Unique Guarantees and Integrated Solutions Are Offered?

The Green Box Guarantee states that if GPRS places a green box layout prior to coring, they guarantee the area will be free of obstructions. If contractors hit an obstruction within marked safe zones, GPRS pays material damage costs.

Integrated providers offer concrete scanning, cutting, core drilling, and hydro excavation through single contracts. This consolidated approach simplifies vendor management and ensures coordination between utility locating and construction activities.

How Does Rapid Response Scanning Support Emergency Projects?

Enhanced Scanning differentiates itself through same-day or next-day service for urgent repair situations. Emergency response capability supports situations like burst pipes under slabs requiring immediate cutting access.

Rapid mobilization prevents extended shutdowns that compound damage and increase total repair costs significantly. Premium pricing for emergency service reflects immediate technician deployment and schedule disruption to accommodate urgent requests.

How Important Is Local Expertise in Scanning Services?

Local providers maintain familiarity with regional construction practices, building codes, and common subsurface conditions. Geographic knowledge allows technicians to anticipate typical utility layouts and structural systems prevalent in specific neighborhoods.

Established regional providers develop relationships with local contractors, facilitating communication and coordination on complex projects. Local expertise proves particularly valuable on renovations of historical buildings with undocumented modifications accumulated over decades.

What Steps Are Involved in Conducting a Concrete Scan Before Cutting?

Professional concrete scanning follows systematic procedures ensuring comprehensive coverage and accurate data interpretation. The process begins with site assessment and concludes with marked safe zones for cutting operations.

Each phase requires coordination between scanning technicians, contractors, and project managers to maintain schedule integrity. Proper execution prevents miscommunication that leads to cutting in unverified areas despite scanning the investment.

How Is GPR Equipment Used on Site?

GPR scanning is performed before coring or cutting concrete in systematic grid patterns across target areas. The GSSI StructureScan Mini XT, used by Prime Test Engineering, represents current handheld technology standards.

Technicians move the equipment slowly across surfaces while monitoring real-time data displays for anomalies. Multiple passes at different orientations ensure complete coverage and verify initial findings against secondary measurements.

What Does Data Interpretation and Reporting Include?

Detailed 2D and 3D reports are generated showing the exact positions of embedded objects relative to surface coordinates. CAD-ready data is provided to contractors for integration into construction drawings and BIM models.

Comprehensive reports document scanning parameters, equipment specifications, and technician certifications for regulatory compliance. Digital deliverables enable contractors to share subsurface information with cutting crews and maintain permanent project records.

How Is Scanning Coordinated with Coring or Cutting Operations?

Surface marking with paint or chalk indicates safe zones where cutting can proceed without obstruction risk. Color-coded systems differentiate between verified safe areas and zones containing detected obstructions requiring avoidance.

On-site coordination ensures that cutting crews understand marked boundaries and confirm locations before equipment operation begins. Safe digging protocols require visual verification of markings and communication between scanning technicians and cutting operators.

Concrete Scanning in Los Angeles as a Strategic Risk Management Practice

Professional concrete scanning represents essential risk management rather than an optional expense for construction projects. The minimal cost of scanning prevents catastrophic utility strikes, structural damage, and worker injuries that destroy project profitability and safety records.

Los Angeles contractors operating in a competitive, highly regulated market cannot afford the liability exposure from unplanned subsurface strikes. Scanning provides documented due diligence that protects contractors legally while ensuring operational continuity throughout project lifecycles.

Util-Locate has served Southern California contractors for over 20 years, delivering 97% accuracy across thousands of scanning and locating projects. This proven track record provides contractors the confidence to proceed with cutting operations, knowing subsurface conditions have been thoroughly verified by certified professionals.
