GPR Scanning for Retail and Commercial Tenant Improvements

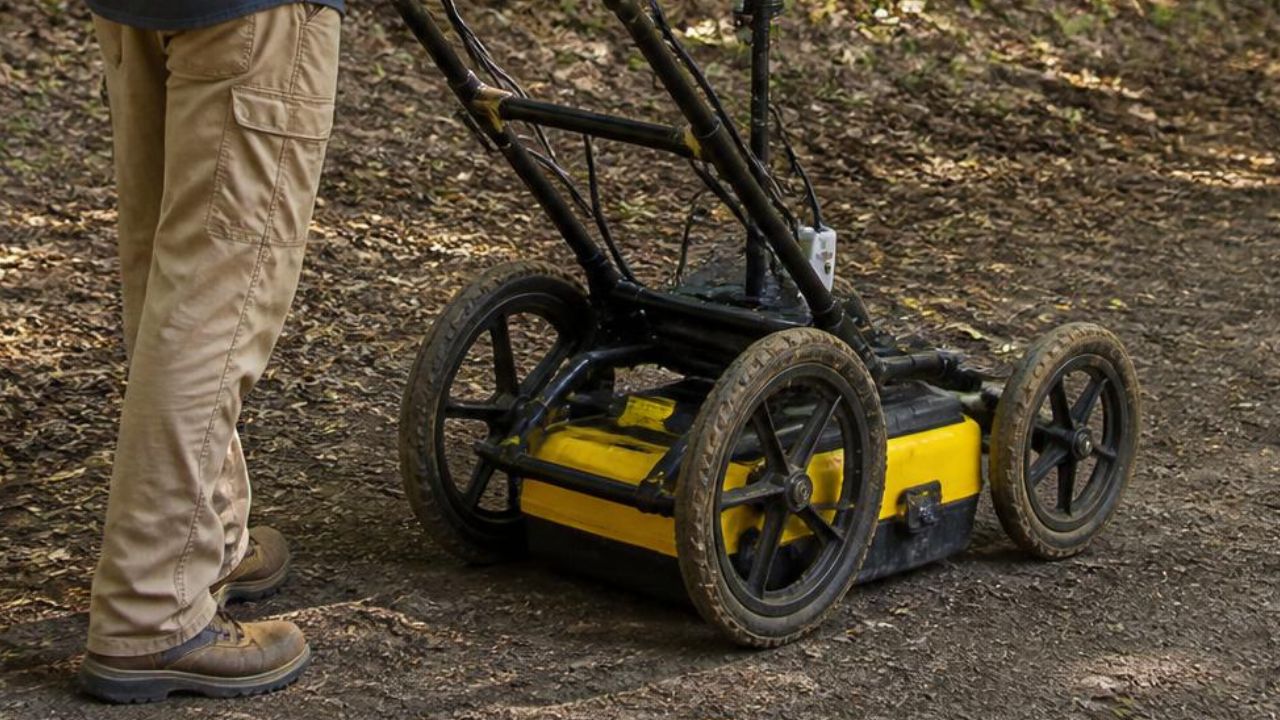

GPR technology

Key Takeaways

  • GPR scanning uses radar pulses to map post-tensioned cables, rebar, conduit, and utilities embedded in concrete slabs with 99.8% accuracy
  • Post-tensioned cable strikes cause violent tendon recoil, severe worker injuries, structural slab damage, and repair costs ranging from $2,875 to $14,220 per incident
  • The average utility strike costs $56,000 in combined repairs and delays, with indirect costs running 29 times higher than direct damage
  • The 811 system locates only public utility lines to the property line; private infrastructure representing 60% of underground utilities requires private locating services
  • Change orders driven by subsurface unknowns account for 8% to 14% of project contract value, with preventable strikes pushing distressed projects to 25%

Retail and commercial tenant improvements involve modifying existing building spaces to meet new occupant requirements. These projects routinely require concrete penetrations for drain lines, electrical conduit, HVAC installations, and structural anchoring. Without accurate subsurface mapping, contractors encounter hidden hazards that trigger costly strikes, project delays, and safety incidents.

Ground Penetrating Radar scanning identifies embedded post-tensioned cables, rebar, electrical conduit, and below-slab utilities before any cutting or drilling begins. This non‑invasive surveying technology eliminates the most common root causes of preventable change orders in commercial construction. More than 265 million square feet of commercial real estate faced lease expirations in 2025, each creating potential tenant improvement work requiring subsurface verification. Here’s what we break down: post-tensioned cable and utility hazards, where GPR scanning fits into the TI workflow, the limits of 811 locating, cost and ROI data, and regional trends across California and Arizona.

GPR Scanning Is Essential for Retail and Commercial Tenant Improvements

GPR scanning uses electromagnetic radar pulses to create detailed maps of objects embedded within concrete slabs and structural elements. The technology supports safe penetration work during retail tenant improvements by identifying hazards before crews begin cutting, coring, or drilling. Contractors performing tenant improvement work in second-generation commercial space face subsurface conditions created by previous tenant cycles, often without accurate as-built documentation.

Buildings with multiple tenant cycles over 20 years rarely maintain complete records of embedded infrastructure installed during prior buildouts. GPR technology provides the only reliable method for mapping current subsurface conditions before modification work begins. This verification prevents strikes that account for 8% to 14% of total project contract value in change orders.

GPR Technology Uses Radar Pulses for Concrete and Utility Detection

Ground Penetrating Radar sends high-frequency radar pulses into concrete and analyzes reflected signals to map internal objects. The system uses calibrated 1.6 GHz or 2.0 GHz antennas, achieving millimeter-level precision in identifying embedded reinforcement and utilities. Radar pulses penetrate concrete and reflect differently when encountering steel, plastic, air voids, or changes in material density.

Technicians interpret these reflections to distinguish post-tensioned cables from standard rebar, identify electrical conduit pathways, and map plumbing lines embedded in slabs. The technology reports 99.8% accuracy across over 350,000 jobs completed since 2001. Real-time data collection allows Project Managers to clear dozens of cutting and coring locations during a single site visit.

Common Subsurface Hazards in Commercial TI Projects

Post-tensioned concrete slabs use high-strength steel tendons stressed to 150,000 to 270,000 PSI after concrete cures. Each tendon carries approximately 24,000 to 33,000 pounds of tension. Cutting through a PT cable causes violent tendon recoil, ejecting concrete fragments from anchor zones and compromising structural load distribution.

Embedded electrical conduit presents electrocution risk when struck during coring or drilling. Legacy campus builds may contain decommissioned utility lines that remain energized or pressurized beneath floor slabs. Previous tenants may have installed private utility services never documented when spaces turned over to new occupants.

GPR Scanning Mitigates Risks in Retail and Commercial Spaces

Proper precautions prevent 76% of utility strikes during excavation and penetration work. GPR Project Managers can complete full-scope tenant improvement scans in a single mobilization, typically clearing all planned cutting areas within hours. This front-end verification eliminates mid-project discoveries that force jobsite shutdowns, redesign work, and schedule delays.

Matt Morris, General Superintendent at Swinerton Construction, confirms that scanning helps limit unforeseen change orders and repair costs that blow project budgets. Mike Keith, Senior Project Superintendent at Turner Construction, reports that GPR ensured safe drilling areas in over 150 locations through very congested floor slabs.

GPR Scanning Reveals the Key Subsurface Risks in Commercial and Retail Tenant Improvements

Subsurface hazards in commercial tenant improvement work fall into three primary categories: post-tensioned structural systems, embedded utility infrastructure, and undocumented private services. Multi-tenant buildings contain shared infrastructure that crosses individual tenant spaces but remains outside new tenant control or documentation.

Commercial buildings constructed after the 1970s frequently use post-tensioned concrete floor systems that allow longer clear spans and thinner slabs. Relying on original construction drawings instead of live GPR scans represents one of the most dangerous mistakes contractors make during tenant improvement planning.

Post-Tensioned Concrete Cables Are a Critical Concern

Cutting through a post-tension cable causes violent tendon recoil at the stored tension load. PT cable strikes cause severe injury or death to workers in the immediate cutting area and structural damage to the slab. The severed cable compromises load distribution across the entire slab section, particularly in two-way systems with tendons running in perpendicular directions.

Damaged cables eject concrete fragments from anchor zones as stored energy releases instantaneously. Repair costs range from $2,875 to $11,850 per incident depending on accessibility and the number of damaged cables. In New York markets, repair costs reach $3,450 to $14,220 per incident, with full foundation repairs exceeding $15,000 when multiple cables fail.

Embedded Electrical and Plumbing Systems Impact TI Work

Striking live electrical conduit during coring or drilling presents immediate electrocution risk to workers operating power tools. Electrical strikes trigger system shutdowns affecting adjacent tenants in multi-tenant buildings, creating liability beyond the immediate work area. Damaging plumbing waste lines triggers water damage and contamination that extends project delays beyond the initial repair timeline.

Cutting through primary structural rebar weakens the slab and requires engineering assessment before work can resume safely. Multi-tenant buildings contain shared infrastructure including fire sprinkler mains, common-area electrical feeders, and telecom risers not documented in tenant-specific plans. This shared infrastructure creates contractor liability exposure that extends beyond the tenant space under construction.

Contractor Liability for Utility Strikes in TI Projects

An estimated 400,000 to 800,000 utility strikes occur annually in the United States when unreported incidents are included, and excavation-related utility damage results in approximately $30 billion in annual societal costs.

The ratio of indirect and societal costs to direct repair costs is 29 to 1 in documented case studies, meaning a strike with $4,000 in direct damage can generate roughly $120,000 in total costs once shutdown, standby, and delay expenses are included.

GPR Scanning Fits Into the Commercial Tenant Improvement Workflow

Commercial tenant improvement timelines operate on compressed schedules dictated by lease commencement dates and tenant revenue requirements. GPR scanning integrates into the pre-construction phase immediately after permit approval and before demolition or penetration work begins. Early subsurface verification allows design teams to adjust MEP routing, structural anchoring locations, and plumbing rough-ins before mobilizing trade contractors.

The scanning process typically completes in a single site visit for standard retail and office tenant improvement scopes. Project Managers mark confirmed clear zones on the slab surface, providing visual guidance for cutting and coring crews. CAD drawings and GPS coordinate data integrate directly into construction documents, supporting ongoing coordination throughout the build phase.

GPR Scanning Timing During a TI Project

Retail buildout timelines span 8 to 16 weeks from permit approval to certificate of occupancy for standard spaces. Restaurant buildouts require 12 to 22 weeks of construction time plus 4 to 12 weeks for permitting. GPR scanning occurs during the mobilization phase before any demolition, cutting, or coring work begins.

Early scanning allows general contractors to identify PT cables, embedded conduit, and below-slab utilities before finalizing penetration locations with MEP subcontractors. This sequencing eliminates mid-project discoveries that force redesign, re-permitting, and rework after demolition has already exposed work areas.

GPR Support for Change Order Reduction and Schedule Adherence

Change orders account for 8% to 14% of project total contract value on typical commercial construction projects. Distressed projects experiencing significant subsurface complications reach 25% in change orders, pushing profitability into negative territory. Rework and delays driven by preventable errors cost the United States construction sector approximately $177 billion annually, equivalent to 5% of all construction spending.

The average value of North American construction disputes surged 40% in 2024 to $60.1 million per dispute. Subsurface strikes during tenant improvement work trigger change orders for structural repairs, MEP rerouting, schedule extensions, and subcontractor standby costs. Pre-work GPR scanning eliminates the discovery events that generate these unbudgeted expenses and timeline impacts.

Documentation and Verification GPR Scanning Provides for Liability Defense

ASCE 38 Quality Level documentation provides engineering-grade subsurface utility information that meets professional practice standards. The 811 system provides surface paint marks and flags but does not produce CAD drawings, GPS coordinates, or documentation meeting ASCE standards. GPR scanning generates verifiable pre-work records showing due diligence in identifying subsurface hazards before penetration work begins.

This documentation supports liability defense if strikes occur due to conditions outside the scanned area or changes made after verification. Timestamped site maps, coordinate data, and photographic records establish the contractor’s reasonable care standard under excavation safety regulations.

811 Call-Before-You-Dig Limitations Affect Commercial TI Projects

The 811 system serves a critical public safety function by locating utility lines owned by public service providers. However, the system carries well-documented limitations especially relevant for commercial tenant improvement projects in multi-tenant buildings. Understanding these gaps helps contractors recognize when private utility locating services become necessary for comprehensive subsurface verification.

The 811 system operates under state-level one-call notification laws that require excavators to request locates before digging. These laws establish the legal framework for public utility notification but do not address private infrastructure beyond the service connection.

Infrastructure 811 Does Not Cover in Multi-Tenant Buildings

The 811 system locates only public utility lines extending from distribution mains to the property line or service connection. Private utility lines include all infrastructure that crosses the meter, service connection, or property line into building ownership. Private utility lines represent more than 60% of all underground infrastructure in the United States, creating a substantial gap in 811 coverage.

Multi-tenant commercial buildings contain internal electrical distribution, plumbing systems, fire suppression networks, and telecommunications infrastructure entirely outside 811 scope. The system does not provide CAD drawings, GPS coordinates, or engineering-grade documentation required for complex tenant improvement coordination.

Private Utility Locating Is Necessary Beyond 811 Services

Contractor fault caused 83% of natural gas-related damages and 92% of telecom-related damages in 2023. Failure to notify 811 before excavation accounts for 24.54% of all utility damage incidents nationally. Excavator failure to maintain clearance around marked utilities represents 16.07% of damages, while incorrect facility records and maps contribute approximately 10% of incidents.

These statistics demonstrate that utility locating extends beyond initial 811 notification to include private infrastructure verification and field validation. Many strikes occurred because contractors assumed 811 marks represented complete subsurface conditions when substantial private infrastructure remained unmapped.

Multiple Tenant Cycles Increase Subsurface Unknowns

Building owners and property managers may not maintain accurate as-built records for buildings with 20 years of tenant cycles. Buildings experiencing multiple tenant improvements over decades accumulate undocumented modifications as each occupant installs custom infrastructure. Previous tenants may have installed gas lines for restaurant equipment, electrical subfeeds for server rooms, or plumbing laterals for specialty uses.

These private installations rarely transfer to subsequent tenants’ as-built packages when spaces turn over. Post-tensioned tendons shift during installation, particularly around blockouts, columns, or plumbing rough-ins, meaning cables specified at 5 feet on center may sit at 4.2 or 5.8 feet in actual field conditions.

Recommended Practices for Integrating GPR Scanning in Retail and Commercial TI

Successful GPR integration begins during the pre-construction phase before finalizing penetration locations or mobilizing demolition crews. General contractors should schedule scanning immediately after permit approval and before releasing subcontractors to begin work. This sequencing allows design teams to adjust MEP routing and structural anchoring based on verified subsurface conditions.

The scanning scope should cover all planned penetration locations plus a clearance buffer around each cutting or coring area. Contractors should request deliverables including marked floor surfaces, CAD drawings, GPS coordinate data, and written reports documenting subsurface findings.

Planning and Scoping GPR Scanning by Project Size and Complexity

Tenant improvement costs vary significantly by space type and finish level, as shown below.

Project Type Cost per Sq. Ft. Typical Complexity Drivers
Basic retail shell $40 – $80 Minimal buildout scope
Standard retail $80 – $150 Finishes, MEP complexity, structural modifications
Office fit-out $150 – $280 Moderate MEP and structural improvements
Restaurant $150 – $350 Kitchen equipment, grease interceptors, extensive plumbing
Medical/dental $200 – $480 Clinical infrastructure, regulatory compliance

Scanning scope and cost scale with project size, penetration count, and subsurface complexity.

Coordinating GPR Data With Design and Construction Teams

GPR data integrates into construction coordination workflows through multiple deliverable formats. Marked floor surfaces provide immediate visual guidance for cutting and coring crews working in the field. CAD files layer subsurface utility locations into master construction documents, allowing MEP designers to verify routing conflicts before finalizing installation details.

GPS coordinate data enables surveyors and layout crews to verify penetration locations using total station equipment. Written reports document subsurface findings and recommendations, supporting submittal packages and providing liability defense documentation. Contractors in Los Angeles and other major markets require these comprehensive deliverables to meet insurance requirements and municipal inspection standards.

GPR’s Role in Managing Tenant and Building Owner Expectations

GPR scanning provides objective data that helps manage expectations when subsurface conditions differ from original construction documents. Pre-work verification eliminates surprises that trigger disputes over responsibility for changed conditions and associated costs. Building owners benefit from documentation showing due diligence in protecting existing infrastructure during tenant improvement work.

More than 265 million square feet of commercial real estate faced lease expirations in 2025, creating competitive pressure to complete tenant improvements quickly. Subsurface verification supports these compressed timelines by eliminating the primary driver of mid-project delays and change orders.

Cost Implications and ROI of Implementing GPR Scanning for Tenant Improvements

The financial case for GPR scanning compares modest upfront costs against the substantial expenses triggered by subsurface strikes. A typical scanning engagement costs significantly less than a single post-tension cable repair or utility strike. The return on investment calculation becomes clear when examining the cascading costs that follow preventable strikes.

Direct repair costs represent only a small fraction of total strike impact when factoring schedule delays, change orders, and indirect losses. The 29-to-1 ratio of indirect costs to direct damage means small initial strikes generate disproportionately large total expenses.

Typical Costs of GPR Scanning Compared to Utility Strike Repairs

Post-tension cable repair costs vary by region, cable count, and accessibility, as summarized below.

Repair Scenario Typical Cost Range
Standard PT cable repair (per incident) $2,875 – $11,850
New York market PT cable repair $3,450 – $14,220
Full PT foundation repair (multiple cables) $5,000 – $15,000+
Monostrand tendon repair (Texas, residential) $1,800 – $4,500
Structural engineering assessment fee $2,000 – $10,000

Post-tension slab repairs carry 30% to 60% cost premiums over equivalent non-PT concrete repair work, and these figures exclude structural engineering assessment fees of $2,000 to $10,000.

Subsurface Strikes Cascade Into Larger Project Delays and Expenses

Structural engineering assessment fees range from $2,000 to $10,000 for post-strike evaluation and repair specification development. Average construction dispute resolution time reaches 12.5 months when strikes escalate into formal claims. Improper excavation practices account for 6.75% of utility damages, while digging before potholing verification causes 4.94% of incidents nationally.

Failure to shore excavations contributes 3.27% of damages in documented case studies. Each failure mode generates cascading costs beyond the initial repair, including jobsite shutdown, subcontractor standby, and schedule extensions.

Evidence Contractors Use to Justify GPR Investment

Contractors present financial comparisons showing that scanning costs represent a small fraction of single-strike exposure. Documentation from previous projects demonstrates change order reduction and schedule adherence improvements after implementing systematic subsurface verification. Insurance carriers increasingly require pre-work scanning on projects involving post-tensioned concrete or congested utility corridors.

Owner requirements in institutional and healthcare markets mandate GPR verification before authorizing penetration work. These requirements reflect the owner understanding that strikes trigger operational disruptions extending far beyond the immediate construction area.

California and Arizona Commercial Markets Drive Demand for GPR Scanning

California and Arizona represent two of the most active commercial construction markets in the United States, with substantial industrial and data center development driving subsurface verification demand. Both states face unique combinations of construction activity, regulatory requirements, and liability frameworks that increase contractor focus on pre-work scanning.

Commercial TI Trends Influencing Subsurface Risk in These Markets

Industrial vacancy rates reached 6.5% in Q2 2026, declining 20 basis points from Q1 and marking the first decrease since Q2 2022. H1 2026 industrial leasing reached 547.9 million square feet, up 18% year-over-year. Leases for 700,000 square feet or larger in H1 2026 surged 125% year-over-year.

Q2 2026 net absorption reached 99.1 million square feet, nearly doubling from Q1 levels, with 276 million square feet of industrial space under construction, up 9.2% year-over-year.

Local Regulations Impact Utility Locating and Contractor Liability

California Government Code Section 4216 establishes state-level excavation notification requirements and contractor liability frameworks. Fines range from $500 to $10,000 per incident for violations of notification and clearance requirements. California law places automatic liability on contractors who fail to follow proper locate and verification procedures regardless of utility owner documentation errors.

This strict liability framework increases contractor focus on comprehensive subsurface verification beyond minimum 811 notification requirements. Arizona regulations follow similar frameworks requiring excavators to exercise reasonable care in identifying subsurface hazards before work begins.

Common Utility and Concrete Conditions in These Regions

Arizona hosts 87 data centers, including 41 operating facilities and 45 planned projects. Arizona total data center capacity reaches 13,759 MW, including 2,661 MW operating and 11,098 MW in planned development. Nearly $50 billion in active industrial construction was underway across Arizona by early 2025.

These data center and industrial projects utilize post-tensioned concrete construction and contain extraordinarily dense subsurface utility networks requiring comprehensive scanning before tenant improvements. California markets face similar conditions with hyperscale data center development, cold storage expansion, and advanced manufacturing facilities.

GPR Scanning’s Role in Enhancing Safety, Compliance, and Efficiency for Retail and Commercial Tenant Improvements

Ground Penetrating Radar scanning has become essential infrastructure for commercial tenant improvement projects targeting compressed timelines and zero-tolerance safety requirements. The technology eliminates preventable strikes that account for the majority of change orders, schedule delays, and worker injuries during retail buildouts and office fit-outs. Contractors implementing systematic subsurface verification demonstrate measurable improvements in change order reduction, schedule adherence, and safety performance.

The financial case for GPR integration remains compelling across all tenant improvement project types and size categories. A single prevented post-tension cable strike or utility damage event generates cost avoidance that exceeds scanning investment by orders of magnitude. This return on investment calculation explains why institutional owners, insurance carriers, and general contractors increasingly require pre-work verification before authorizing penetration work in commercial buildings.

Util-Locate provides comprehensive subsurface verification services including GPR, xray concrete scanning, utility locating, and engineering-grade documentation for commercial construction projects throughout California and Arizona. The company’s 97% accuracy rate and ASCE-compliant deliverables support contractor due diligence requirements on retail, office, restaurant, and medical tenant improvement projects. Twenty years of operational experience across institutional, industrial, and commercial markets enables rapid response to compressed tenant improvement timelines.

Schedule GPR Scanning With Util-Locate Before You Cut, Core, or Drill

Util-Locate has verified subsurface conditions on tenant improvement projects across California and Arizona since 2001, combining GPR concrete scanning with ASCE-compliant documentation your team can hand to inspectors, insurers, and building owners. Our certified technicians report a 97% accuracy rate across more than 350,000 completed jobs, giving general contractors and project managers a clear picture of what sits inside the slab before demolition or coring crews arrive on site. Call 1-888-885-6228 or request a free quote to schedule scanning for your next retail, office, restaurant, or medical tenant improvement project.

Frequently Asked Questions About GPR Scanning for Tenant Improvements

Q1. How much does GPR scanning cost for a tenant improvement project?

A. GPR scanning costs scale with the size of the space, the number of planned penetrations, and subsurface complexity, and a typical scanning engagement costs a small fraction of a single post-tension cable repair. Most retail and office tenant improvement scans complete in a single mobilization, which keeps costs predictable compared to change orders triggered by an undetected strike. Contact Util-Locate for a project-specific quote based on your scope and timeline.

Q2. How long does a GPR scan take before a tenant improvement project starts?

A. Standard retail and office tenant improvement scans typically complete in a single site visit, often clearing dozens of cutting and coring locations within a few hours. Larger or more congested spaces, such as restaurant or medical buildouts with extensive MEP routing, may require additional time on site. Scheduling scanning immediately after permit approval keeps the verification step from delaying demolition or trade mobilization.

Q3. Does GPR scanning replace the need to call 811 before a tenant improvement project?

A. No. The 811 system remains required for locating public utility lines up to the property line, and GPR scanning addresses what 811 does not cover. Private utility lines represent more than 60% of underground infrastructure in the United States, and GPR scanning verifies post-tensioned cables, conduit, and private lines inside the building that 811 locators never mark. Contractors should treat 811 notification and GPR scanning as two separate, complementary steps.

Q4. What happens if a post-tensioned cable is cut during a tenant improvement project?

A. Cutting a stressed PT tendon releases stored tension instantly, causing violent recoil that can eject concrete fragments and injure workers near the cutting area. The severed cable also compromises load distribution across the slab, often requiring engineering assessment and repairs costing $2,875 to $11,850 per incident, or up to $14,220 in higher-cost markets such as New York. GPR scanning identifies tendon locations before cutting or coring begins, preventing this outcome entirely.

Q5. Can GPR scanning detect non-metallic pipe and plastic conduit inside concrete slabs?

A. Yes. GPR scanning identifies non-metallic materials such as PVC pipe by detecting changes in subsurface density and reflection patterns, not just metal content, which sets it apart from simple metal detectors. This makes GPR the preferred method for verifying plumbing lines, plastic conduit, and voids in addition to rebar and post-tensioned cables. Technicians interpret the radar data on-site to mark clear zones before penetration work begins.
