Best Practices For Safe Digging After Utilities Are Marked

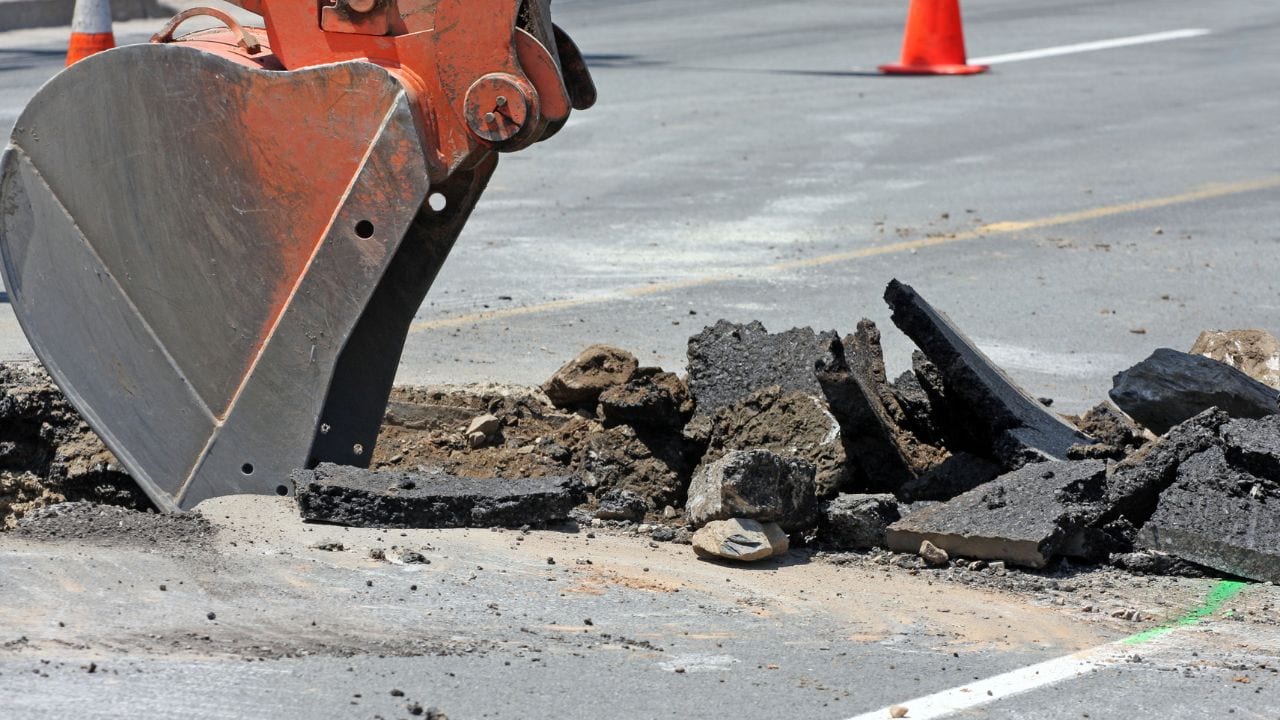

excavation after utilities are marked

Key Takeaways

  • Utility marks show approximate location only; they provide no depth information, and the facility can be anywhere within the tolerance zone, not necessarily centered on the mark.
  • Tolerance zones vary by state; know your state’s specific requirements (18 to 24 inches), and use only hand digging or vacuum excavation within these zones until utilities are visually exposed.
  • Potholing is mandatory for safe excavation; visually exposing utilities through test holes eliminates uncertainty about location and depth, preventing 99% of preventable strikes.
  • Private utilities are often unmarked; irrigation systems, sewer laterals, propane lines, and site utilities require independent verification through as-builts, owner interviews, and private locators.
  • Full compliance reduces incidents by over 99%; calling 811, respecting marks, hand digging in tolerance zones, and potholing before mechanized work dramatically cuts strike risk and liability.

Utility marks on the ground are not the finish line; they’re the starting point. The marks show approximate locations, not exact positions. They give no depth information. Private utilities often remain unmarked. Understanding what marks mean and what they don’t is the difference between a safe dig and a catastrophic strike.

This guide provides field-ready safe digging best practices for excavation after utilities are marked. It covers tolerance zones, the critical buffer where hand digging or vacuum excavation is mandatory. It details step-by-step utility locating safety procedures for verifying marks, daylighting utilities, protecting exposed lines, and maintaining compliance throughout the project.

The data is clear: 99% of utility strikes are preventable. Most result from three failures: not calling 811, ignoring marks, or using mechanized equipment inside tolerance zones. Following the procedures in this guide eliminates these failure points. Proper hand digging and vacuum excavation reduce utility strikes by over 99% compared to mechanized methods. Every excavator, from operators to supervisors, must know these rules. They apply to every dig, no exceptions, no shortcuts.

What Utility Marks Tell You (And What They Don’t)

Utility marks indicate three things: approximate horizontal path, presence of a facility in the corridor, and nothing else. They do not show exact alignment. They provide zero-depth information. There is no standard burial depth; utilities can be at any depth depending on installation date, soil conditions, erosion, and site changes.

Standard Utility Marking Colors

Color Utility Type Examples
Red Electric Power lines, cables
Yellow Gas/Oil/Steam Natural gas, petroleum
Orange Communications Fiber, phone, cable TV
Blue Water Potable water mains
Green Sewer Sanitary/storm drains
Purple Reclaimed Water Irrigation (non-potable)
Pink Survey Temporary markings
White Proposed Excavation Your dig limits

Marks are approximate because locating equipment has inherent margin of error. Surface-to-buried translation introduces additional variance. Site changes, erosion, grading, settlement, vegetation growth, shift the relationship between surface marks and buried lines. The utility can be anywhere within the tolerance zone, not necessarily centered on the mark.

Critical limitations: Marks don’t guarantee all utilities are identified. Private utilities, irrigation lines, site lighting, private gas services, sewer laterals, are often NOT marked by 811. Marks don’t confirm depths, exact alignments, or the absence of conflicts and crossings. Excavators must verify everything through physical exposure before digging.

Understanding Tolerance Zones: The Critical Safety Buffer

The tolerance zone is a legally defined horizontal buffer on each side of a marked utility where mechanized excavation is prohibited until the line is visually exposed. It accounts for marking inaccuracy and prevents accidental contact during digging.

Definition And State Variations

The Common Ground Alliance (CGA) standard defines the tolerance zone as the width of the utility plus 18 inches on each side, measured from the outer edge. State laws vary significantly:

  • 18-inch states: Pennsylvania
  • 24-inch states: Florida, California, North Carolina, Idaho
  • Variable calculations: Texas (½ diameter + 18 inches), Illinois (18 inches + diameter), New York (½ diameter + 24 inches from centerline)

Quick-Reference: Tolerance Zone Rules By Scenario

Scenario Risk Level Required Approach
Single line crossing Moderate Pothole at crossing; hand/soft dig
Parallel utility run High Continuous hand digging or vacuum excavation
Congested corridor (3+ utilities) Very High Pothole every 10-20 ft; vacuum excavation preferred
Critical utility (gas/HV electric/fiber) Very High Gas: 10-30 ft equipment setback; Electric: 10-20+ ft clearance; Fiber: hand dig only

Safe Practices Inside The Tolerance Zone

Only two methods are permitted: hand digging or vacuum excavation. Mechanized equipment, backhoes, excavators, and trenchers cannot operate until the utility is visually exposed and its position confirmed.

Hand digging requires blunt or rounded shovels. Never use picks, pry bars, or pointed tools. Dig at shallow angles away from the expected utility path. Make small lifts, 2 to 4 inches at a time. Stop immediately when the warning tape appears.

Vacuum excavation is the safest method to avoid damaging buried utilities. It uses pressurized water (hydro excavation) or air (air excavation) plus vacuum suction to expose utilities without physical contact. The data proves its effectiveness: proper hand digging and vacuum excavation reduce strike incidents by over 99% compared to mechanized digging.

When To Pothole/Daylight

Potholing, digging test holes to visually expose utilities, is mandatory in specific scenarios:

  • All utility crossings
  • Every 50-100 feet along the trenches
  • Every 10-20 feet for parallel runs
  • Areas with uncertain or inconsistent marks
  • Congested corridors or critical facilities

Potholing utilities verification removes all uncertainty about location and depth. It is the most reliable method to prevent damage. Professional potholing services provide efficient, non-destructive exposure of underground utilities.

Step-By-Step: How To Dig Safely After Utilities Are Marked

Phase 1: Pre-Excavation Verification

Begin every job with systematic verification. Check the 811 ticket number and confirm the marked area matches your work limits. Verify all positive responses from utility owners have been received. Walk the entire site and inspect every mark for clarity, completeness, and consistency.

Start-Of-Job Checklist:

  • Verify 811 ticket number and area match the excavation plan
  • Confirm all positive responses received from utility owners
  • Walk site, inspect all marks for clarity and completeness
  • Identify conflicts: missing marks, crossings, unclear areas
  • Brief crew on tolerance zones and stop-work triggers

White-Lining Workflow:

Mark your proposed excavation limits with white paint or flags BEFORE calling 811. Ensure white-lining matches construction drawings. Keep marks visible throughout the locating process. Clear white-lining helps locators understand your work scope and improves marking accuracy.

Phase 2: Safe Excavation Procedures

Daylighting/Potholing Workflow:

Start at utility crossings, the beginning and end of parallel runs, and at regular intervals along trenches. Use vacuum excavation when available, it’s faster and safer than hand digging. Expose the utility completely to confirm exact location, depth, and condition. Only after visual confirmation can mechanized excavation proceed outside the tolerance zone.

Hand/Soft Digging Best Practices:

DO:

  • Dig at shallow angles, away from expected utility path
  • Make small lifts (2-4 inches at a time)
  • Stop immediately when warning tape appears
  • Use vacuum excavation when available

DON’T:

  • Use picks, pry bars, or pointed tools
  • Stab or jab into the ground
  • Lever or pry against the utility
  • Assume the utility is deep, always assume shallow

Protecting Exposed Utilities:

Once exposed, utilities need protection. Support lines with foam padding, boards, or cradles. Maintain 12-inch clearance from heavy equipment. Barricade and mark exposed lines to prevent accidental contact. Never drive over utilities or compact soil on top of them. During backfill, use hand-placed clean fill, no rocks or debris that could damage protective coatings.

Phase 3: Ongoing Jobsite Habits

Daily Preservation:

Utility marks fade and deteriorate. Install barriers around marks, cones, fencing, caution tape. Refresh faded paint as needed. Keep equipment off marked corridors. Document the site with photos before, during, and after excavation. Include ticket information and time/date stamps in every photo.

Communication Rules:

Assign spotters within 10 feet of marked utilities. Establish clear hand signals for stop, slow, and emergency. Give every worker stop-work authority, if anyone sees something unsafe, work stops immediately. Move equipment slowly and deliberately near marks. Rushed operations cause strikes.

When Marks Are Compromised

If marks are faded, covered, or removed:

  • Pause work near the risk area
  • Preserve remaining marks
  • Call 811 to request re-mark
  • Document conditions before and after
  • Resume only when marks are reconciled

If you discover an unmarked or mismarked utility:

  • Stop work immediately
  • Secure the area, keep all workers away
  • Notify the utility owner and 811
  • Document with photos
  • Follow utility owner instructions before continuing

For professional assistance with underground utility locating and detection, contact specialized services to ensure compliance and prevent costly strikes.

Handling Private Utilities and Special Situations

Private utilities create hidden dangers. The 811 system marks public infrastructure, and lines owned by utility companies serving multiple customers. Private facilities, those serving only one property, often go unmarked. Excavators must identify and protect these lines independently.

Private Utilities Often NOT Marked By 811:

Private irrigation systems, site lighting circuits, propane lines to outbuildings, sewer laterals from buildings to mains, pool and spa lines, and private data or security systems are typically excluded from 811 responses. These facilities can be anywhere on the property. Striking them causes service disruptions, expensive repairs, and safety hazards.

Risk-Reduction Options:

Request as-built drawings from the property owner before starting work. Interview the owner about known utilities, when they were installed, where do they run, what services exist on the property. Check building permits for recent installations. Hire a private locator to mark non-811 facilities. Use ground-penetrating radar (GPR) in complex areas where multiple private utilities are suspected. Pothole more frequently in areas where private utilities are likely, near buildings, around landscaping, in utility corridors.

When Mark Validity Expires:

Most states impose validity periods of 10 to 21 days from the ticket date. Marks lose reliability faster in practice. Rain washes away paint. Traffic and foot traffic smudge marks. Grading and surface work obliterate them entirely. Time alone degrades visibility.

Quick Validity Test: Are marks still visible? Have they been disturbed by traffic or weather? How much time has elapsed since marking? Have site conditions changed, grading, paving, landscaping? Has heavy rain occurred?

If uncertain, request a re-mark before digging. Never proceed with faded, incomplete, or questionable marks. The small delay prevents major damage.

If You Damage A Utility

Damaging a utility requires immediate, disciplined response. The first minutes determine whether the situation remains manageable or escalates into catastrophe.

Immediate Response Steps:

Stop work immediately. Do not move equipment or disturb the damage site. Secure the area and keep workers at a safe distance. Notify the utility owner using the emergency number on the 811 ticket. Follow the utility owner’s instructions exactly, they know their system and its hazards. Document everything with photos and notes. Do NOT backfill the damage; it’s illegal to hide utility strikes. Report the incident to 811 and local authorities as required by state law.

EVACUATE AND CALL 911 If:

  • Gas odor or hissing sound detected
  • Arcing, sparking, or electrical buzzing occurs
  • Fire or smoke appears
  • Water main ruptures or flooding begins
  • Any worker sustains an injury

Critical Rule: Report even minor nicks or coating damage. A small scratch on a gas line can lead to corrosion and future rupture. A tiny nick in the fiber optic cable disrupts critical communications. Never hide damage. It’s illegal, dangerous, and discoverable. Utility owners and investigators can trace strikes to specific equipment and operators. Honesty limits liability and allows proper repairs.

Common Mistakes And How To Avoid Them

Most utility strikes result from preventable errors. Understanding common myths and mistakes helps crews recognize and avoid them.

Myth vs. Reality:

Myth: “Paint shows exact location” → Reality: Paint marks approximate corridor; utility can be anywhere within tolerance zone

Myth: “Having a ticket means safe to dig anywhere” → Reality: Safe only within marked scope using approved methods inside tolerance zones

Myth: “All utilities are marked” → Reality: Private utilities, abandoned lines, and recent installations often missed

Myth: “Standard burial depth exists” → Reality: NO standard depth; erosion, settlement, and grading changes mean always assume shallow

Damage During Backfill Happens Because:

Backfilling causes more strikes than expected. Rocks and debris in fill material puncture utility coatings. Compaction equipment operates directly on exposed lines. Bucket edges scrape utilities during final grading passes. Soil weight shifts lines into sharp objects.

Prevention: Use hand-placed clean fill around utilities. Remove rocks and debris. Compact in lifts away from the line, not on top of it. Keep equipment buckets and blades clear of exposed facilities. Treat backfill as carefully as the initial excavation.

Why Congested Corridors Are Extra Risky:

Urban and commercial corridors often contain multiple utilities in close proximity. Tolerance zones overlap. Marks become difficult to distinguish. Lines cross in complex 3-D intersections. One utility may be directly above, below, or beside another.

Mitigations: Potholes every 10 to 20 feet in congested areas. Work at a slower pace. Confirm each crossing individually before proceeding. Use vacuum excavation instead of hand digging; it provides better visibility and precision. Brief the crew specifically on congested conditions before starting work. Assign dedicated spotters. Document the 3-D layout with measurements and photos to guide later phases of excavation.

Frequently Asked Questions

How long do I need to wait after calling 811?

48 to 72 hours (2 to 3 business days) for utility owners to mark their lines. Some states require only 48 hours; others mandate 72. Check your state’s specific requirement. Never start work before the legal waiting period expires, even if marks appear early.

Can I use powered equipment if I’m careful?

No. Within the tolerance zone, only hand digging or vacuum excavation is permitted until the utility is visually exposed. “Being careful” does not change the law. Mechanized equipment, backhoes, excavators, trenchers, cannot operate until potholing confirms the exact utility location and depth.

What do I do when marks conflict or cross?

Stop work immediately and call 811. Request that both utility owners come to the site to resolve the conflict. Do not guess which mark is correct. Do not proceed until both utilities are positively identified and their positions confirmed through potholing.

When should I request a re-mark?

Request re-marking when marks fade, get covered by soil or paving, or when work extends beyond the validity period (10 to 21 days depending on the state). Also re-mark if site conditions change, grading, weather, traffic, that compromise mark visibility or accuracy.

What if I find an unmarked utility?

Stop work immediately. Secure the area and keep workers away. Notify the utility owner if identifiable, or call 811 to help identify the facility. Document with photos. Do not proceed until the utility owner provides clearance and the line is properly marked.

How deep do I hand-dig before using machines?

You must visually expose the utility through potholing to confirm the exact depth and location first. There is no set depth; utilities can be at any level. Only after visual confirmation and proper support can mechanized equipment operate outside the tolerance zone.

Safe Digging Practices: The Non-Negotiables

Utility damage prevention takes discipline at every phase, no exceptions and no shortcuts. Before digging, call 811 at least 2–3 days in advance, confirm markings are clear, complete, and non-conflicting, know your state’s 18–24 inch tolerance zone, and brief the entire crew on procedures and stop-work triggers. During excavation, hand dig or vacuum excavate only within tolerance zones, potholes to visually confirm utility locations and depths, protect exposed lines with proper padding and clearance, and document compliance with photos.

If conditions change, stop immediately, re-mark when markings are compromised, and report any damage right away; never hide a strike. The single most important step is potholing before using mechanized equipment, because it removes uncertainty and prevents most avoidable strikes. Full compliance can reduce incidents by over 99%, and the stakes are explosions, electrocutions, service disruptions, and major fines.
